Modded Predicates and Events

Warning

This is an advanced topic that requires at least some programming experience in Java/Kotlin or other similar high-level languages. Modding experience (particularly in Minecraft) is also recommended. I assume here that you already know how to create a mod for Minecraft. If you are completely new and want to learn how to create a mod, follow the fabric tutorial here as well as using this page to set up your development environment. Kotlin is required to implement modded events/predicates.

As of version 1.2, TrueAdaptiveMusic now allows the creation of custom predicate and event types! This allows for a whole new level of Music Pack creation as predicates and events can be made that are specific to other mods. One great example is with the Cobblemon mod. This fantastic mod adds the world of Pokémon to Minecraft, and one staple of Pokémon is the battles! There's just one problem, the battles have absolutely no music. What if we could make a new predicate type that specifically is true when the user is in a battle? Then we could specify some battle music to play when it's true! Let's dive in.

Creating Modded Predicates and Events

Implementing either modded predicates or events (or both) requires creating a "bridge mod". That is, a mod that "bridges" the functionalities of two mods. If you are the creator of the mod you want to make the bridge for, you could also just follow the steps below as an integration (similar to adding ModMenu support) directly into your mod.

First, make a new mod (or open up your existing mod project if you are the mod owner). I personally recommend using the Minecraft Development plugin with Intellij as it makes the boilerplate steps very easy. However you do it, you'll want to make a mod for the Minecraft version you are using and for fabric.

Once your environment is loaded, you'll want to get the jar files for both your mod (if you are making a bridge mod) and the TrueAdaptiveMusic mod which can be found on the TrueAdaptiveMusic releases page. Once you have the required jars, throw them into your mod project's base directory.

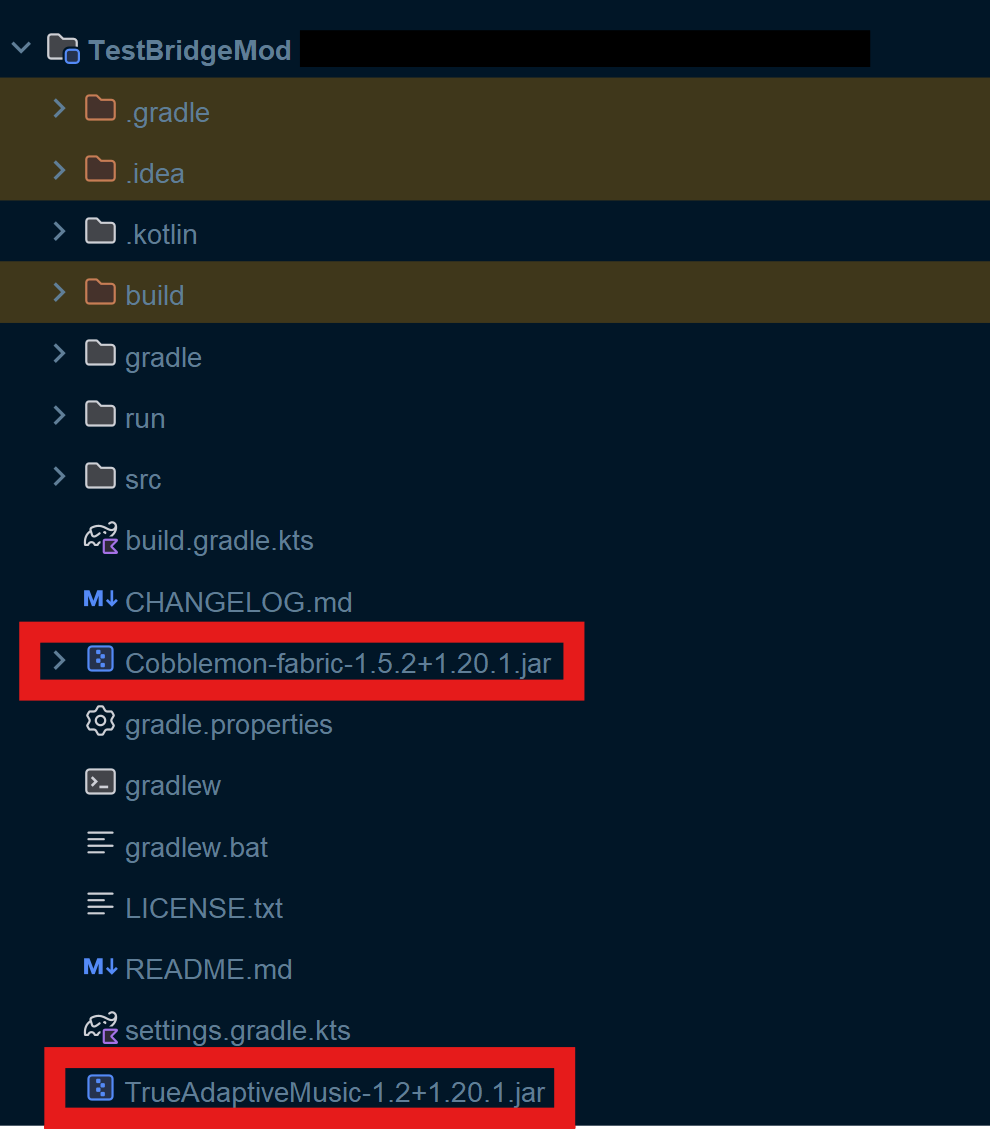

Once you've done that, your project should look something like this: Project directory

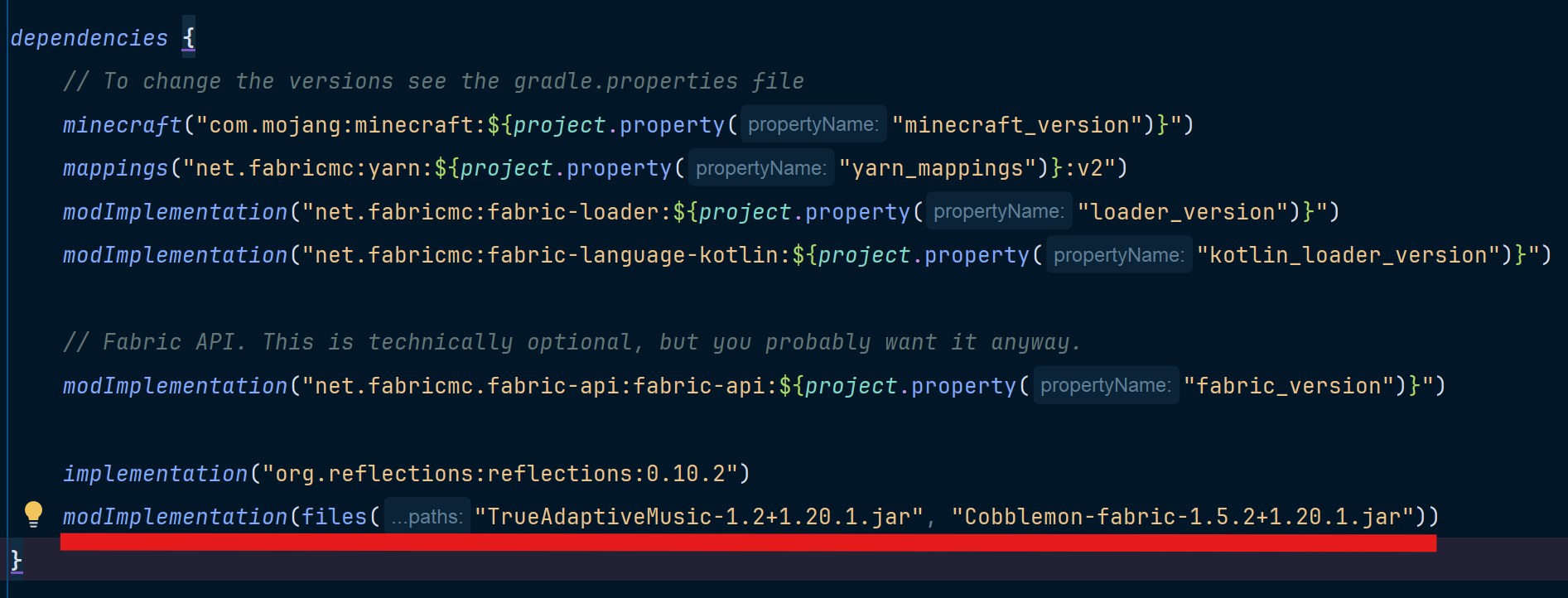

Finally you'll need to add these as dependencies in your gradle build. Open your "build.gradle.kts" file, go to the dependencies task and add a modImplementation directive for each jar like below: Dependencies

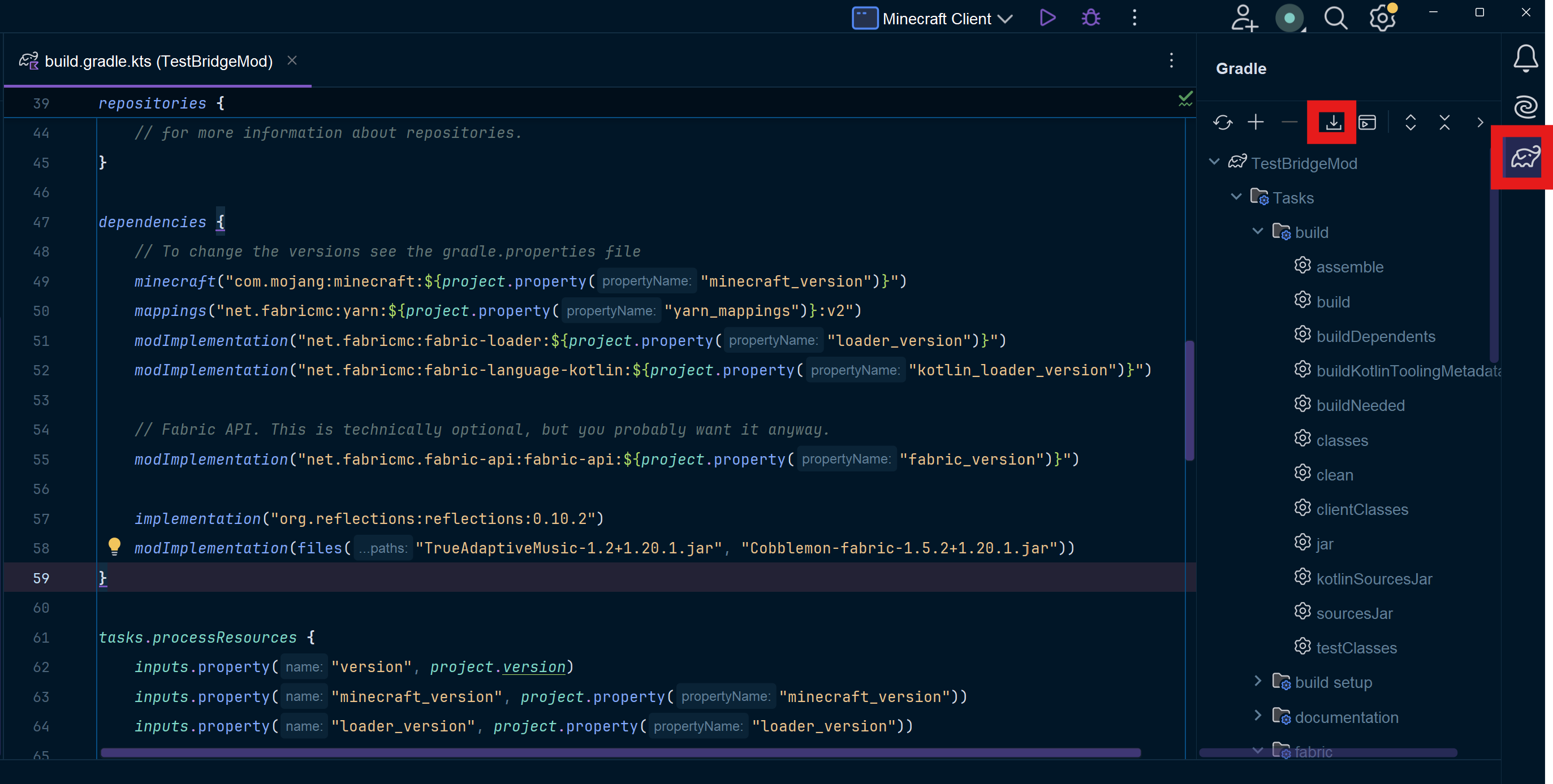

Finally make sure to download sources for gradle and you're good to go! In IntelliJ this can be done by opening the gradle window and clicking the download icon: Gradle sources download

After that task finishes, you're ready to create your custom predicates or events! If you are creating an event, I would still recommend reading the predicate tutorial first, as events are similar but more complicated.

Creating Modded Predicates

Creating modded predicates is definitely the easier of the two. To start, create a new class under the client section of your mod. For the sake of convention, please name your class with "Predicate" at the end. Here we'll name it PokeBattlePredicate, since we want music to play when we are in a pokemon battle.

New predicate file

Implementing the API

After creating the class, have it extend the MusicPredicate abstract class from the TrueAdaptiveMusic API, which you will need to import (your IDE should be able to help you with this). If the class can't be found, try restarting your IDE or downloading sources again as shown above.

class PokeBattlePredicate: MusicPredicate() {
}

Now implement the missing virtual function implementation, test(MinecraftClient):

class PokeBattlePredicate: MusicPredicate() {
    override fun test(client: MinecraftClient): Boolean {
        return false
    }
}

This is the function that decides whether your predicate should evaluate as true or false at each tick of the game. Make this just return false for now.

Before implementing that though, first some extra housekeeping needs to be done. This next part is required or your predicate will not work.

Add a companion object to your class implementing the MusicPredicateCompanion<T> interface, where T is your predicate class. You are required to override both getTypeName and fromJson or your predicate will not work.

companion object: MusicPredicateCompanion<PokeBattlePredicate> {
    override fun getTypeName(): String {
        return "poke_battle"
    }

    override fun fromJson(json: JsonObject): MusicPredicate {
        return PokeBattlePredicate()
    }
}

For getTypeName, replace the name in the example with your own, following the snake_case convention. You can keep fromJson as is for now, but you'll want to revisit if you decide to add additional parameters to your type as described later.

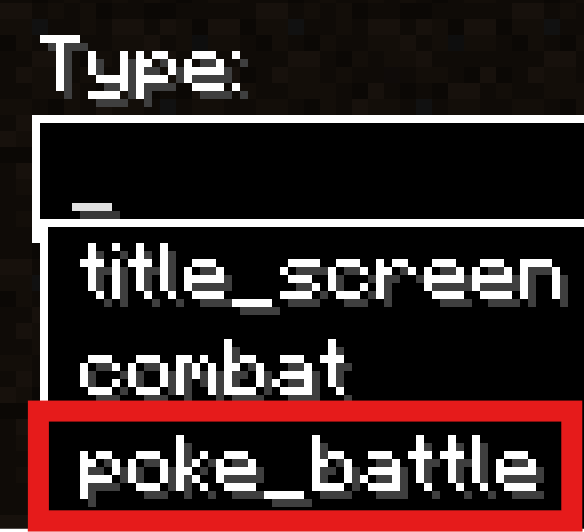

For now, try launching the game in your dev environment. Create a new pack, click to add a new child node, and you should now see your new type in this type list! New Type

Now close the game. It's time to make the predicate type actually work!

Implementing the test Function

This section depends entirely on what your predicate type is actually for. So for this section I'll just show you how the poke_battle predicate is implemented, as it is very simple. Luckily, Cobblemon supplies a publicly available singleton object CobblemonClient that contains state information for the client. Inside the object is a reference to the battle. This gives us a trivial solution, just check if battle is null. If it isn't, return true, otherwise false. This is the resulting function:

override fun test(client: MinecraftClient): Boolean {
    return CobblemonClient.battle != null
}

Not all mods will allow such a simple solution though. You may need to use a combination of mixins and accessmodifiers to properly implement. If you run into any issues, feel free to ask for help in the #modding-help section of the discord (requires the Modder role). If you want to add parameters to your predicate to allow for further customization of your type, head over here.

Creating Modded Events

Modded event types are more complicated to implement than predicate types, so I would recommend reading that first. What makes them more complicated is that they will almost always require a mixin to implement. I say almost because if you are making event types as an integration to a mod you own rather than as a bridge, you can just invoke the event manually from your mod code. If you don't already know how to create mixins, follow this wiki.

Implementing the API

First let's create the event class itself. This is very similar to creating a new predicate type. First create a class implementing the MusicEvent abstract class from the TrueAdaptiveMusic API, following the convention of the class name staring with "On" and ending with "Event". For this example, we'll be creating an event called OnPokeBattleVictoryEvent which should trigger when the user wins a pokemon battle:

class OnPokeBattleVictoryEvent: MusicEvent() {
}

Additionally we'll need to add a companion implementing the MusicEventCompanion<T> interface, where T is your event class. And it is also required you override both fromJson and getTypeName or your event will not work.

companion object: MusicEventCompanion<OnPokeBattleVictoryEvent> {
    override fun fromJson(json: JsonObject): MusicEvent {
        return OnPokeBattleVictoryEvent()
    }

    override fun getTypeName(): String {
        return "on_poke_battle_victory"
    }
}

When creating the string for getTypeName please follow the snake_case and on_ prefix conventions.

Unlike predicates, we don't have a test function to implement. This is because events aren't evaluated every tick, instead they are manually triggered by a callback invocation. This callback can be accessed via MusicEvent.invokeMusicEvent as shown below.

Creating the Mixin

Now we'll need to make a mixin to trigger the event. If you are the creator of the mod are making the event for, you can just invoke the callback seen below directly in your mod code.

This particular mixin was a bit painful to work around, but here was the result:

@Mixin(BattleMessagePane::class)
class OnPokeBattleVictoryEventMixin {
    @Inject(
        method = ["addEntry(Lcom/cobblemon/mod/common/client/gui/battle/widgets/BattleMessagePane\$BattleMessageLine;)I"],
        at = [At("HEAD")])
    fun addEntry(entry: BattleMessagePane.BattleMessageLine, ci: CallbackInfoReturnable<Int>) {
        val userWonString =  battleLang("win", MinecraftClient.getInstance().player?.displayName ?: return)
            .string

        if (entry.line.getInternalString() == userWonString) {
            MusicEvent.invokeMusicEvent(OnPokeBattleVictoryEvent.getTypeName())
        }
    }
}

From what I have found, since the mixin target is a Kotlin class, it is best to write the mixin itself in Kotlin as well. This is of course against the standard practice and Java should be used for mixins whenever possible.

As you can see, we are calling MusicEvent.invokeMusicEvent and passing in the type name of our event. This informs the internal music manager to play the event's music. That's really all there is to creating a modded event, but what if you only want the event to play under the conditions based on parameters of an individual event instance? For that you'll first want to add some parameters to your event type, and write a validate implementation as show below.

Implementing the validate Function

If you do add parameters to the event type, you'll want to override the validate member function (outisde of the companion object). This function is called just before your event is invoked to add an additional layer of logic to determine whether the event should occur. The parameters that are passed into validate are determined at the call site of the event invocation (i.e. in the mixin). For example you might have a setup like this (stringToTest is an event parameter as described here):

OnSomethingEvent.kt
class OnSomethingEvent(private val stringToTest: String): MusicEvent() {
    override fun validate(vararg eventArgs: Any?): Boolean {
        val someCondition = eventArgs[0] as? Boolean ?: return false
        val someString = eventArgs[1] as? String ?: return false
        return someCondition && someString == stringToTest
    }

    ...
}
The above code takes in some arguments from the event invoker and interprets them to validate whether the event instance should occur.

Then at the event call site:

SomeMixin.java
...
MusicEvent.invokeMusicEvent(OnSomethingEvent.getTypeName(), someCondition, someString)
...
We pass in the type name like usual, but then include the parameters matching the types used in the validate definition.

Now the event will only trigger if the validate function says so after the event has been invoked by the mixin.

Adding Parameters to Your Predicate or Event Type

Just like some vanilla predicates have additional parameters for each instance to specify, modded predicates and events can have the same. For both events and predicates, you must add your parameters a very specific way. In both cases the first thing you need to do is declare your paramaters as private val. For example, we'll use the BiomePredicate:

class BiomePredicate(private val biomes: List<BiomeIdentifier>): MusicPredicate()
Here we want any instance of the BiomePredicate to store a list of biome identifiers (biomes) to match with what the current biome the player is in.

In order for your predicate/event parameters to work, you need to fulfill two conditions for each parameter:

  1. They must be declared in the constructor parameter list.
  2. They must be one of the types supported by the UI, otherwise it will be impossible to use the UI to create an instance of the type. For a list of supported types, go here.

We also want to make sure the predicate can be serialized properly, so inside the companion, we need to override the fromJson member function:

override fun fromJson(json: JsonObject): BiomePredicate {
    return BiomePredicate(
        if (JsonHelper.hasArray(json, "id"))
            JsonHelper.getArray(json, "id").map { element -> BiomeIdentifier(element.asString) }
        else
            listOf(BiomeIdentifier(JsonHelper.getString(json, "id"))))
}

Now for predicates, the parameters you created can be used in your test function. For events, they can be used in the validate function.

Additional Note

If a music pack contains events/predicates that the client doesn't have the bridge mod for, the pack will still load but those triggers will never occur.
